Tag Archives: Interpump

High pressure pump

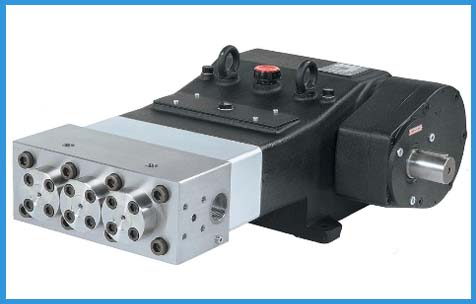

Interpump 66SS Series Pump – 1450 Rpm

Part No: SSE2030

  • 200 Bar
  • 30 Lpm
  • 1450 Rpm
  • 15.6 Hp, 11.47 kW
  • 24mm male shaft
  • AISI 316L st.steel manifold
  • 85°C max water temperature
  • 3/4″BSP female inlet
  • 3/8″BSP female outlet
  • Call sales office for installation advice


High Pressure Pump/Pompa tekanan tingi




Download certificato PDF
QUALITY – A CONSTANT COMMITMENT
Just as innovation is the key concept behind the Interpump Group, quality and commitment are the cornerstones of its activity at every level.
Quality suffuses the Group’s entire operations and naturally extends into all companies associated with it.
Prerequisites to quality are meticulous, methodical and constant checking and testing of all phases of corporate life and every step in the production process from raw material purchase to the final product.
Together with this pursuit for quality excellence are the combined effort and commitment of the Group’s constituent firms, each with its own distinct sphere of responsibility.
The result is a high level of employee motivation which, within each company, translates into an overall effort and commitment to quality workmanship and quality output.
Interpump quality is the fruit of an outlook that permeates the Group and is shared by all those in it.
The result can be seen in efficient, guaranteed, user-friendly products designed to meet modern-day requirements of energy efficiency and respect for the operator and user as well as the environment.
Interpump Group S.p.A. is certified since 1993 to UNI EN ISO 9001:2008 (ISO 9001:2008), certificate n. CERT-00145-93-AQ-BOL-ACCREDIA/1.
www.dnv.it
INNOVATION – A CONSTANT OBJECTIVE
For the Interpump Group, the goals it accomplishes, the results it achieves, the aims it realizes are never a point of destination, but rather intermediate stopovers from which to continue on towards ever-more ambitious heights.
In fact, innovation is the constant objective of the member and associate companies of the Group.
Innovation which is the fruit of constant, in-depth, scientific research into materials, techniques and products, carried out with the most sophisticated and up-to-date equipment available.
To provide the space and opportunity required to seek solutions that anticipate and meet the needs of the market, Interpump Engineering was created, a research and development center with state-of-the-art equipment where the ideas generated by the Group’s member firms are gathered, studied, elaborated and brought to fruition by its technical staff.
Interpump Engineering is the entity that improves upon what already exists while generating the new, original solutions—many of which are patented—that confer upon the Group’s products the exclusivity, reliability, safety and quality for which they are known.

70-series-pump-1450-rpm-part-no-w100100h-369-pz-vs





Interpump High Presurre Pump For Sea water RO


INTERPUMP INDONESIA
Pumps - Evolution 2 Series
Pumps – Evolution 2 Series

Latest generation series, designed by Interpump Engineering Research Center and entirely produced in Italy with sophisticated automation processes.
The usual high quality standards are paired with significant technical innovations, which make the product even more performing and reliable.

Flow rate from 8 to 16 liters per minute, max.pressure 275 bar (4000 psi), motor power up to 10 HP.
Available in specific versions for direct coupling to European electric motor, US electric motor Nema 184 TC and petrol engine.

Pumps - 47 Series
Pumps – 47 Series

Renowned wordwide for its extraordinary reliability, this Series represents the “Heart” of the Interpump range and is the main reference for professional high pressure washing.
Maximum flow rate is 30 liters per minute, max.pressure is 250 bar (3600 psi) with motor power up to 15 hp.

Pumps - 66 H.P. Series
Pumps – 66 H.P. Series

Designed to equip professional high pressure cleaners and industrial systems, with motor up to 30 HP, the 66 Series ensures by farthe highest quality standards in its application segment, for pressure up to 500 bar.

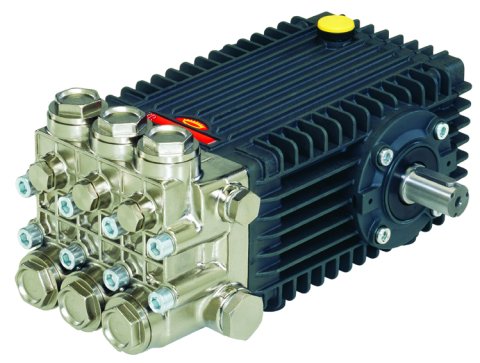

Pumps - HT Series
Pumps – HT Series

The HT (High Temprerature) series was designed for usein car-wash systems and industrial applications up to 85°C (185°F).

The introduction of highly innovative components and materials guarantees the highest reliability even in the toughest conditions of use.

The range of HT series is very wide, covering flow rate from 5 to 170 liters/minute and working pressure up to 250 bar.

Pumps - SS Series - Stainless Steel
Pumps – SS Series – Stainless Steel

The SS series pumps, which includes the SS71 range, are equipped with AISI 316L manifolds and are designed for various applications in the fields of reverse osmosis, food, chemical and pharmaceutical industries.
The quality of the materials used make them suitable for use with aggressive fluids.
Five different frame sizes cover flow rate from 5 to 150 liters/minute and working pressure up to 250 bar.

Pumps - Hydraulic Drive
Pumps – Hydraulic Drive

In addition to electric motors and petrol engines, Interpump pumps are also available in dedicated configuration for coupling to hydraulic motors.

The solutions for this application field are many and of a high quality level.

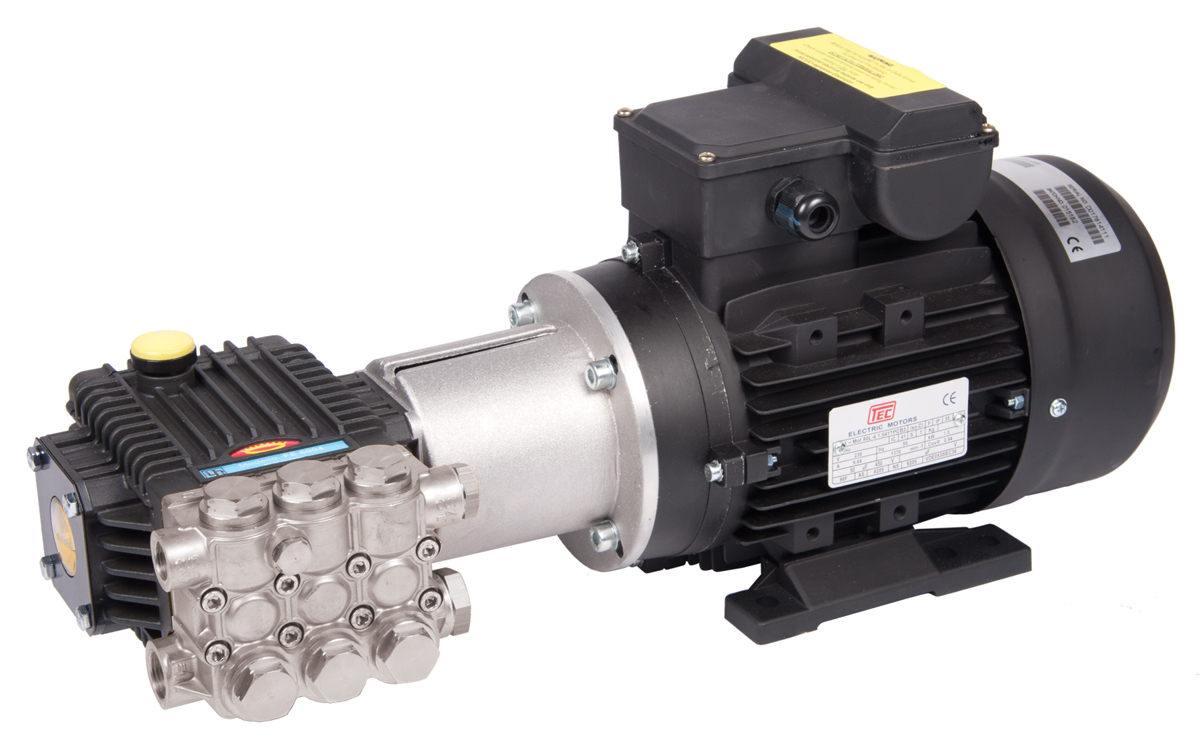

Motorpumps
Motorpumps
From 3 hp singlephase to 5.5 hp threephase, Interpump offers on the market a range of high quality motorpump units, with pressure from 100 to 180 bar and flowrate from 10 to 17 liters/minute.
The units are available in different configurations according to the customer’s requirements.
The most complete version includes on/off switch with power cord, integrated automatic pressure regulation valve and delayed totalstop system (automatic stop system when closing the gun).
This entry was posted in Product and tagged .


High Pressure Pump / Pompa Tekanan Tinggi


INTERPUMP INDONESIA

HISTORI Interpump Group, the world’s largest manufacturer of high pressure pumps, was                                                                                      born in 1977 from the intuition and initiative of a man, Fulvio Montipò, and has developed                                                                                       thanks to the perseverance of other men who shared his philosophy, giving life to an                                                                                                   extremely ambitious project.

Mr. Montipò, in fact, introduced substantial technical modifications to the product, designing and building pumps that were more compact, quieter and easier to service.
Another qualifying element of this innovation was the adoption of full-ceramic pistons, which ensure a higher overall reliability.
This authentic revolution permitted Interpump Group to achieve the worldwide leadership ever since the early 80’s, thus becoming the recognised reference, even for the competitors.
The leadership has strengthened throughout the years, up to nowadays, thanks to the completion of the range and to unparalleled quality standards, guaranteed by a total control of the production process starting from the raw material up to the finished product.
Interpump Group manufactures today pumps with pressure up to 500 bar and professional high pressure cleaners, with 75% of total sales destined for export.

QUALITY

QUALITY – A CONSTANT COMMITMENT
Just as innovation is the key concept behind the Interpump Group, quality and commitment are the cornerstones of its activity at every level.
Quality suffuses the Group’s entire operations and naturally extends into all companies associated with it.
Prerequisites to quality are meticulous, methodical and constant checking and testing of all phases of corporate life and every step in the production process from raw material purchase to the final product.
Together with this pursuit for quality excellence are the combined effort and commitment of the Group’s constituent firms, each with its own distinct sphere of responsibility.
The result is a high level of employee motivation which, within each company, translates into an overall effort and commitment to quality workmanship and quality output.
Interpump quality is the fruit of an outlook that permeates the Group and is shared by all those in it.
The result can be seen in efficient, guaranteed, user-friendly products designed to meet modern-day requirements of energy efficiency and respect for the operator and user as well as the environment.

Interpump Group S.p.A. is certified since 1993 to UNI EN ISO 9001:2008 (ISO 9001:2008), certificate n. CERT-00145-93-AQ-BOL-ACCREDIA/1.

INNOVATION – A CONSTANT OBJECTIVE
For the Interpump Group, the goals it accomplishes, the results it achieves, the aims it realizes are never a point of destination, but rather intermediate stopovers from which to continue on towards ever-more ambitious heights.
In fact, innovation is the constant objective of the member and associate companies of the Group.
Innovation which is the fruit of constant, in-depth, scientific research into materials, techniques and products, carried out with the most sophisticated and up-to-date equipment available.
To provide the space and opportunity required to seek solutions that anticipate and meet the needs of the market, Interpump Engineering was created, a research and development center with state-of-the-art equipment where the ideas generated by the Group’s member firms are gathered, studied, elaborated and brought to fruition by its technical staff.
Interpump Engineering is the entity that improves upon what already exists while generating the new, original solutions—many of which are patented—that confer upon the Group’s products the exclusivity, reliability, safety and quality for which they are known.70-series-pump-1450-rpm-part-no-w100100h-369-pseries-motor-pump-unit-part-no-m100-1200-894-pz-vs
