Industrial Reverse Osmosis Systems Indonesia

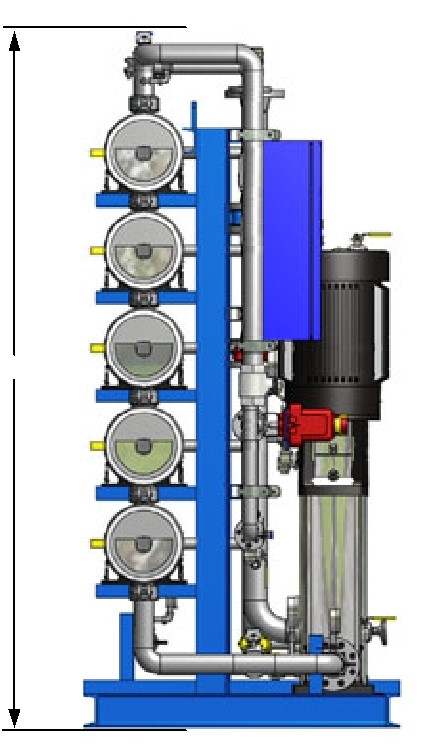

The WATTECH ‘WRO-8H’ Series Reverse Osmosis system Indonesia  is designed for industrial applications requiring high purity water (98-99% salt rejection)

Nominal output capacities of 36,000-432,000 GPD (25-300 GPM).
Flexible design allowing for easy customization to meet tight engineering specifications.

Features/Benefits

• High rejection, 8″ x 40″ thin-film composite (TFC) membrane elements in a spiral-wound configuration.
• FRP membrane housings with PVC end-cap material, stainless steel side-entry feed/reject ports, and white polyurethane finish. Designed for 300 psig pressure rating.
• Stainless steel multi-stage feed pump with TEFC motor (230/460V, 3-Phase).
• Epoxy –coated carbon steel skid/frame assembly.
• Stainless steel pre-filter housing with 5.0-micron cartridges.
• NEMA-4 programmable logic controller (PLC) package complete with operator lights and switches for optimal system control. Includes pre-wired motor starter, low inlet and high pump discharge pressure switches with alarms, and pre-treatment interlock.
• Product water conductivity monitor with digital display and adjustable alarm.
• Panel-mounted product, reject, and recycle flowmeters with digital display.
• Panel-mounted stainless steel system pressure gauges and sampling valves.
• In-line system temperature indicator.
• PVC low pressure piping/valves and 304 stainless steel high pressure piping and valves.
• Automatic system inlet feed valve.
• Automatic membrane flush cycle (at programmed timed intervals).

Optional Equipment

• All 304/316 stainless steel process piping and valves (low and high pressure lines).
• Premium-efficient feed pump motors.
• Inlet feed-water pH monitor/controller.
• Inlet feed-water ORP monitor/controller.
• Inlet feed-water hardness monitor.
• Inlet feed-water Silt Density Index (SDI) test assembly.
• Membrane flush cycle with RO product.
• RO product diversion valve.
• Touch-screen operator interface terminals in lieu of lights and switches.
• Skid-mounted membrane Clean-in-Place systems.
• RO system performance evaluation software packages.
• Product water storage tanks and re-pressurization pump systems.
• Multi-media, activated carbon, and water softener pre-treatment systems.
• Inlet feed-water chemical injection systems for pH adjust, dechlorination, and anti-scalant.
• Separate-bed, mixed-bed, and electro-deionization post-treatment systems.
